The Contracor BlastRazor Z-25 abrasive blast pot is a high-performance, 25 liter capacity unit designed to work with any dry abrasives with a maximum grain size of 4mm. The BlastRazor's unique design allows for superior performance and durability, making it the perfect choice for any serious professional. With its ability to quickly and effectively remove paint, rust, scale, and other contaminants, the BlastRazor is perfect for a wide variety of applications including prepping surfaces for painting, removing graffiti, or cleaning industrial equipment. So if you're looking for an affordable abrasive blast pot consider this Contracor BlastRazor Z-25.
Technical data
| Max. working pressure, bar | 10 |
| Vessel capacity, liter | 25 |
| Working temperature, °С | -10 / +50 |
| Vessel diameter, mm | 306 |
| Vessel height, mm | 960 |
| Weight, kg | 46 |
Compressed air consumption (m³/min)
| Nozzle diameter | Abrasive blasting | Plus blast helmet | Plus 50% reserve | Minimum air input |
| 6.5 mm | 2.3 | 0.5 | 1.4 | 4.2 |
| 8.0 mm | 3.9 | 0.5 | 2.2 | 6.6 |
| 9.5 mm | 5.5 | 0.5 | 3.0 | 9.0 |
| 11.0 mm | 7.2 | 0.5 | 3.9 | 11.6 |
| 12.5 mm | 9.6 | 0.5 | 5.0 | 16.1 |
Table of performance
| Nozzle diameter, mm: | 6.5 | 8 | 9.5 | 11 | 12.5 | |
| Compressed air output, m³/min., at 8 bar pressure | 4.2 | 6.6 | 9 | 11.6 | 16.1 | |
| Average output, m²/h | SA 2 | 10 | 15 | 21 | 28 | 37 |
| Average output, m²/h | SA 2,5 | 5 | 9 | 14 | 21 | 28 |
| Average output, m²/h | SA 3 | 4 | 6 | 9 | 13 | 17 |
| Average abrasive consumption kg/m | SA 2 | 40 | 35 | 32 | 29 | 28 |
| Average abrasive consumption kg/m | SA 2,5 | 58 | 51 | 46 | 42 | 40 |
| Average abrasive consumption kg/m | SA 3 | 78 | 68 | 62 | 56 | 54 |

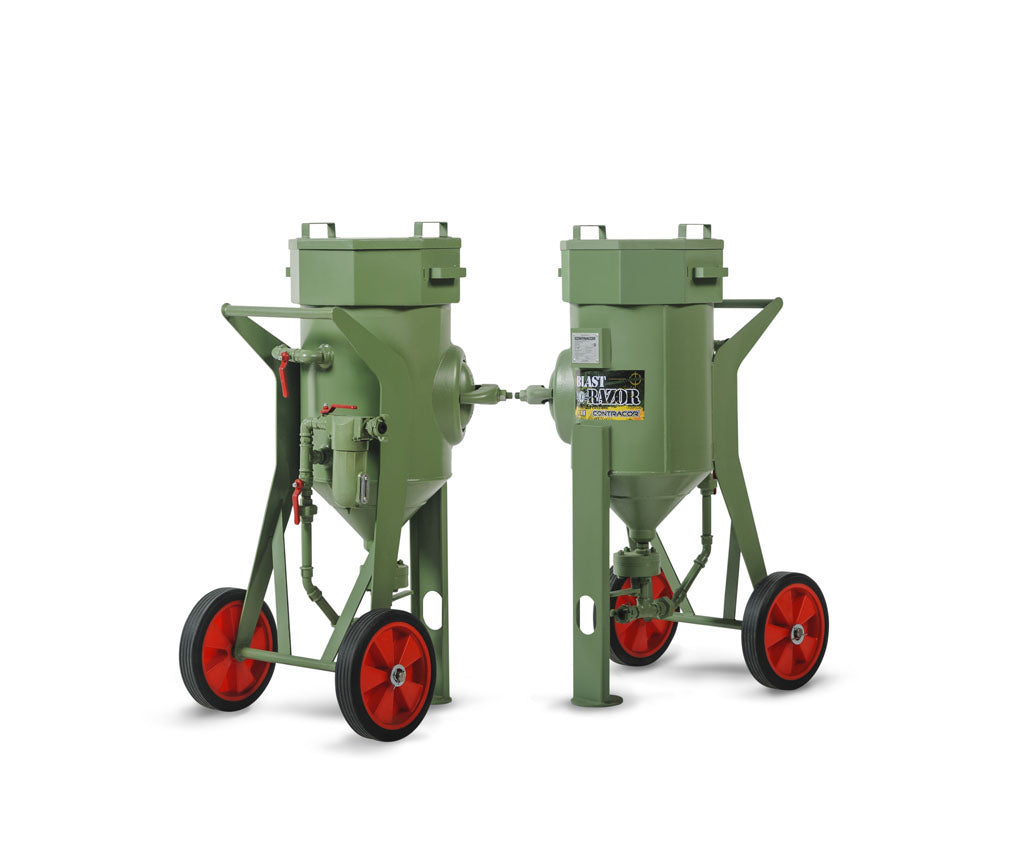

Blastrazor Z-25
Contains the following items:
- 25 liter capacity tank
- Screen
- Cap
- Sand valve
- High-performance moisture separator
- Inspection hatch

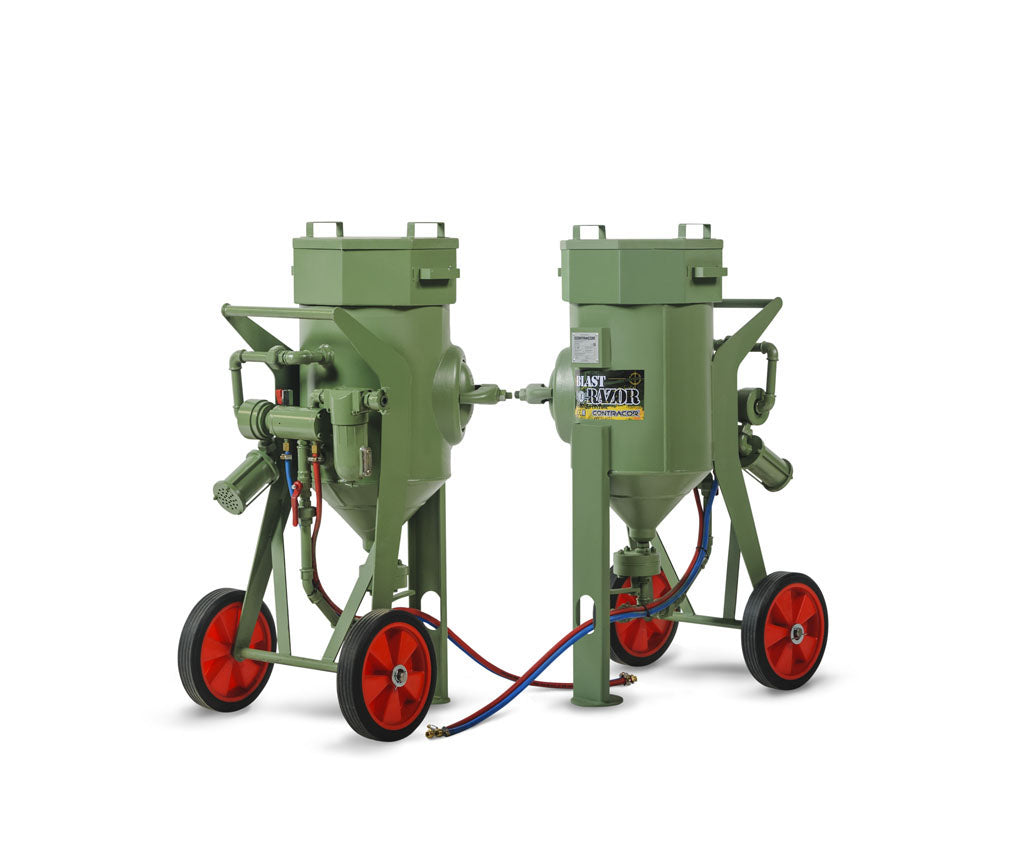

Blastrazor Z-25RC (with remote control)
- 25 liter capacity tank
- Screen
- Cap
- Sand valve
- High-performance moisture separator
- Inspection hatch
- Remote control device with a pneumatically-operated
RC main valve - Deadman control handle
- 5-meter twin-line hose with hose fittings
BlastPack-25
This blasting package contains everything you need to get started with Contracor blasting equipment.
- BlastRazor Z-25RC
- 5m ExtraBlast-13 blast hose
- Nylon hose coupling CQP-0
- Nylon nozzle holder NHP-0
- Venturi nozzle tungsten carbide NTC #3 (5mm)
If you are going to use aggressive abrasives such as corundum, ceramic, silicon carbide or steel grit, we recommend using a BlastRazor -RCS version.
-
